Revolutionizing Coating and Drying: Introducing the Fluid Bed Top Coater

VJ Instruments proudly presents the Fluid Bed Top Coater, a cutting-edge dryer and coater specially designed to handle smaller trial batches for granulators. Our innovative Fluid Bed Granulator offers versatile processing capabilities, combining flexibility and cost-effectiveness. In this article, we will explore the technology, applications, requirements, and benefits of this remarkable solution.

Watch How It Works

Explore the cutting-edge technology behind the Fluid Bed Top Coater by VJ Instruments in action. This video provides an insightful look into the coater’s innovative features and capabilities, making it an ideal solution for pharmaceuticals, chemicals, and the food industry. See how it efficiently handles small trial batches and offers precise control for coating and drying processes. Don’t miss the opportunity to witness this revolutionary solution in operation.

Application

We have introduced our Fluidbed Granulator (coating and drying) for the research and development in pharmaceuticals, chemicals, food industry and academics like pharmacy colleges and institutions. Coating process of pellets are to modify colour, improving test, modified release form and protects from moisture and oxygen.

REQUIREMENT

Till now the research and development units of pharmaceutical companies were forced to manufacture large unnecessary quantities of test drugs due to the requirements of existing standards coating facilities. Needless to say, this resulted in huge wastage effort and money.

SOLUTION

Fluid Bed Granulator is designed to suit this specific need with unique standard of small batches of pellets. It ensures that the quantity of the test batch never exceeds your requirements.

BENEFITS

In addition to handling aqueous as well as organic film coating systems, it is extremely portable. An advance control panel helps you to monitor and record all the settings for the Fluid Bed Granulator.

COATING CYLINDER/CONTAINER/BOWL

Coating bowl is consisted of central cylindrical portion fabricated from SS- 316 quality material. A Glass cylinder is provided on the upper cylinder to have view while coating.

HEATER

The heater heats the inlet air to the desired temperature required to dry the pellets. It can be controlled to deliver the air from ambient to 90 C.

EXHAUST PIPE

The exhaust pipe clears the unwanted fumes and dust generated by core pellets and coating material from the coating bowl.

SPRAY GUN

Spray guns is provided which fits in top spray coating. The spray gun delivers drop- lets of the coating solution on the pellets. Its superb performance is achieved by the use of a new range of nozzles made up of SS-316 and metered dozing with the help of peristaltic pumps. It is easily adjust- able along with its standard. You can achieve droplet size from 50 to 5000 micron depending on viscosity of solution. Standard nozzle size of spray guns is 1 mm and customised sizes are also available as per the requirement.

CONTROL PANEL

4 Inch Touch Screen PLC based Advanced control panel offers complete control over the various setting for the coater.

PERISTALTIC PUMP

Peristaltic pump delivers exact amount of solution to the spray gun through silicon pipe.

Operation

Top-Spray Coating

Spray coating can be used for all fluid bed systems, be it in batch or continuous operation or if the film is applied from a sprayed solution or suspension. For this processing option from the parameters has to be chosen to avoid agglomeration, i.e. liquid bridges between the air suspended particles.

If spraying a solution or suspension the liquid only serves as a vehicle to deliver the coating material to the surface of the substrate. The quality of the coating extensively depends on the statistical residence time of the particles in the coating zone. For a classic fluid bed unit only top-spray coating is possible. Bottom- spray arrangement can be made by the replacement of container. A perfect film is generally not required for this function, but care must be taken that the droplets should not be too viscous before touching the substrate, in order to maintain a good spreadability. As however neither the particle motion, nor the travel distance of droplet from nozzle to substrate are uniform, the film structure is generally rather porous, but nevertheless measuring up to the above described requirements.

Technical Specification

Parameter	Specification
Model No.	VJFBTC-01
Interface	PLC
Electrical Services	As per country requirements
Foundation	Self
Temperature Controller	Ambient to 80°C
Temperature Sensor	PT-100
Heater	1 HP

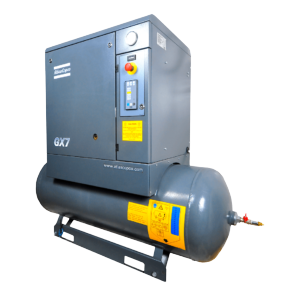

Fluidised Air Blower	Compressor Air 7.5 Bar
Peristaltic Pump RPM	3 to 100 rpm
Spray Gun	SS316 – 1mm bore
Height	860mm
Length	710mm
Width	400mm
Weight (Approx.)	110 Kg

*Capacities mentioned above depend on samples used and may vary accordingly.

Note: VJ Instruments product development is a continuous process so specifications may change without prior notification.

Safety Features

Emergency stop switch.
Auto stop feature when process time completes.

Certifications

01.

CE Certificate

We prioritize quality and safety and proudly display our CE certification which meets EU standards for health, safety, and environmental protection. Our team is dedicated to ongoing training and education for continued compliance and customer satisfaction. Choose us as your trusted partner for quality products and services.

02.

GMP Certificate

Our product/facility meets high safety standards and has earned the internationally recognized GMP certification for excellence. We’re dedicated to quality and safety in everything we do, so you can trust us for safe and high-quality products.

03.

ISO Certificate

Our company is ISO certified and values quality and customer satisfaction above all else. We aim to exceed customer expectations with top-notch service and products, making your business with us a great experience.

04.

MSME Certificate

MSME Certified companies comply with the MSMED Act guidelines and are certified by the government of India. By partnering with an MSME Certified company, you ensure reliable products and services while supporting economic growth.

Frequently Asked Questions

We understand that you may have questions about our Fluidized Bed Top Coater, its applications, and how it can benefit your specific needs. Here are some common questions and answers to provide you with quick and helpful information:

What is the primary application of the Fluid Bed Top Coater?

The Fluid Bed Top Coater is primarily designed for coating and drying processes in industries such as pharmaceuticals, chemicals, and the food industry. It can be used for modifying color, taste, creating modified release forms, and protecting pellets from moisture and oxygen.

How does the Fluid Bed Top Coater help reduce wastage in research and development units?

The coater is designed to handle small batches of pellets, ensuring that the quantity of the test batch never exceeds the specific requirements. This helps in minimizing wastage of resources and effort in research and development.

Can the coater handle both aqueous and organic film coating systems?

Yes, the Fluid Bed Top Coater is equipped to handle both aqueous and organic film coating systems, providing versatility for different coating needs.

What are the technical specifications of the Fluid Bed Top Coater?

The technical specifications include details such as the model number, interface (PLC), electrical services, temperature control range, heater capacity, fluidized air blower specifications, peristaltic pump RPM, spray gun details, and physical dimensions of the coater.

What is the operation mode for coating with this coater?

The coater can perform top-spray coating, suitable for various fluid bed systems, whether in batch or continuous operation. This mode is effective in preventing agglomeration and maintaining the desired coating quality.

Is there a control panel for monitoring and adjusting settings?

Yes, the Fluid Bed Top Coater features an advanced control panel with a 4-inch touch screen that offers complete control over various settings for the coater, ensuring precise and efficient operation.

Are custom nozzle sizes available for the spray gun?

Yes, the coater offers customized nozzle sizes for the spray gun to accommodate specific requirements based on the viscosity of the coating solution.

What is the heater's temperature control range for drying pellets?

The heater can heat the inlet air to the desired temperature required for drying the pellets, with control ranging from ambient temperature to 90°C.
